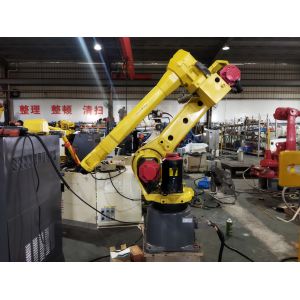

M-20iA/10L Used FANUC Robot 6 Axis 10kg Payload 2009mm Reach

Name: M20iA10L Used FANUC Robot 6 Axis 10kg Payload 2009mm Reach
Brand: FANUC
Price: 1 USD

Cheap M-20iA/10L Used FANUC Robot 6 Axis 10kg Payload 2009mm Reach for sale

Brand Name : FANUC

Model Number : M-20iA/10L

Place of Origin : JAPAN

MOQ : 1

Payment Terms : T/T

Supply Ability : 5

Delivery Time : 5 working days

Packaging Details : Wooden Box

Degree of freedom : 6 Axis

Controller : R-30iA

Max. Payload : 10kg

Reach : 2009mm

Weight : 250kg

Stock : in stock

Contact Now

FANUC M-20iA/10L Robot

The FANUC M-20ia/10L industrial robots are designed for automated assembly, robotic packaging, and automated material handling applications. This articulated robot can also be used in robotic welding scenarios similar to the FANUC Arc Mate 120ic/10L The M-20IA 10L is a longer reach six axis robot with servo driven motors. The FANUC M20ia/10L is available in the FANUC R30ia controllers. The robotic manipulator part number for this model is A05B-1222-B302. While similar to its predecessor the FANUC M-16ib/10L, the M 20ia/10L is a hollow wrist robot allowing for an internal cables, creating greater flexibility, durability and motion range. The wrist and J3 of this FANUC industrial robot arm carries an waterproof rating of UP67 under the normal specifications. In addition, the M-20ia 10L has a reach that is comparable to the FANUC M-710ic/50 Robot.

Specifications

Axes 6

Payload: 10 KG (22 lbs)

Reach: 2009 MM (79.09 in)

Repeatability: ±0.1mm (.0039 in)

Robot Mass: 255 KG (562 lbs)

Structure: Articulated

Robot Motion Speed

J1 195 °/s (3.40 rad/s)

J2 175 °/s (3.05 rad/s)

J3 180 °/s (3.14 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)

Robot Motion Range

J1 - 370°

J2 - 260°

J3 - 460°

J4 - 400°

J5 - 380°

J6 - 900°
